The new Tripster AT Plus. Like a Tripster AT but more. Much more. More clearance, more capability, more gravel. More everything.
We’ve taken our favourite Tripster AT and jacked it to the hilt. Who needs 650B? With ample tyre clearance of 700 x 50mm you can have a larger tyre without the rolling ability compromise of a smaller diameter wheel. A narrower tyre should be used in muddier conditions.
The Tripster AT Plus has a more sloping top tube than our other gravel bikes, giving the rider more manoeuvrability around the bike when the going gets rough. It also has a lower bottom bracket to lower the centre of gravity when fitted with larger tyres.
For even extra manoeuvrability, the Tripster AT has internal routing for a dropper post. Not ridden a dropper post on a gravel bike before? When you ride it for the first time, you'll wonder why you didn't make the switch years ago.
We have an all-new Kinesis All Terrain carbon fork for the AT Plus with extended clearance for bigger tyres. This fork also comes with internal dynamo and brake hose routing, and cargo mounts – rack it up, and ride on out.
The Tripster AT is one-by optimised (2x available with modified cable routing and no ability to then run a dropper) and will work with both electronic and mechanical groupsets – pick your poison.
The Tripster AT Plus has triple bottle mounts, top tube mounts and fork cargo mounts for maximum bike-packing capability. And that's what the all-new Tripster AT Plus is ALL about – maximum capability.

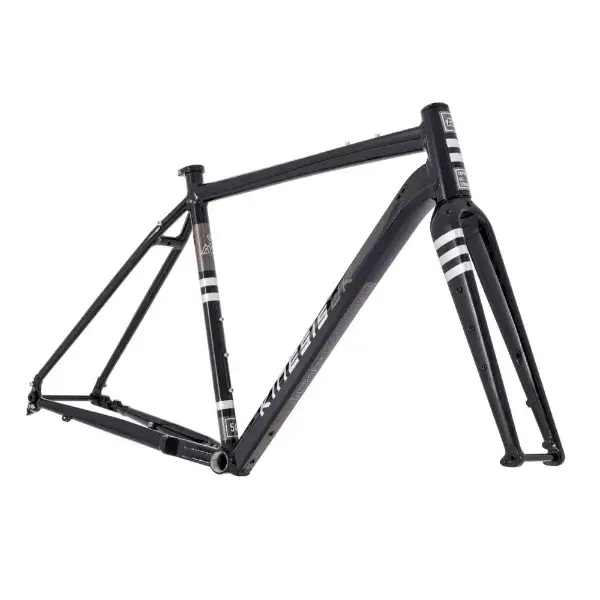

Kinesis - Tripster ATR Plus - Frame Set
• Tough yet lightweight 7046 series Kinesium tubeset with tapered machined headtube.
• 31.8mm seat tube for 27.2mm seat post (will add a bit of compliancy).
• 31.8mm front mech clamp required.
• Colour-matched Columbus Futura Carbon Plus fork with 12mm thru axle.
• Inboard Shimano Flat-mount disc mounts on frame and frame and fork (maximum 160mm rotors).
• Seat stay mounts for mudguards and pannier racks. Bridges on chain stay and seat stay for fender mounting runs 40mm tyres with full mudguards for clean winter riding!
• Beyond gravel capability with 700c x 45mm or 650b x 52mm tyre clearance.
• 3 x bottle boss mounts for extra carrying capacity or storing a tool keg.
• Optimum hydration system – multi-position down-tube bottle cage mounting to allow for full bottle carry capacity even with a frame bag.
• GW Switch Lever Thru-axles included
• Internal cable routing for mechanical and electronic gear systems.
• BSA threaded BB for real-world low maintenance riding.
• 22mm long flat mount disc brake bolts required for the frame.
• COLOURS: Midnight Blue (Decals: Royal Blue and Golden Metallic.) |
• SIZING & WEIGHTS: (Centre/Top) 48cm = 1.77kg | 51cm = 1.8kg | 54cm = 1.84kg | 55.5cm = 1.89kg | 57cm = 1.91kg | 60cm = 1.96kg | 63cm = 1.99kg
• FORK WEIGHT: Kinesis Tripster Disc Thru Axle Fork - 534g with axle and 463g without.
• FRAMESET includes: Columbus Futura Carbon Fork, Kinesis headset with ACB bearings, Seat clamp, front and rear axles and cable port hardware.
