The original performance gravel bike, combining a performance-oriented road geometry & parts with clearance for mountain bike tyres up to 2.1". Start on asphalt, hit the gravel, switch to single track. Its geometry makes you fast; its tyres unstoppable.
In the box: Frame, U-Turn fork, headset, seattube collar, front & rear Carbon-Ti thru-axle, 2 derailleur hangers, 1 front derailleur mount, 3 MultiStops (2x, 1x, Di2), chainstay cable exit, BB guide, cable liners, noise-reduction foam sleeves, manual.

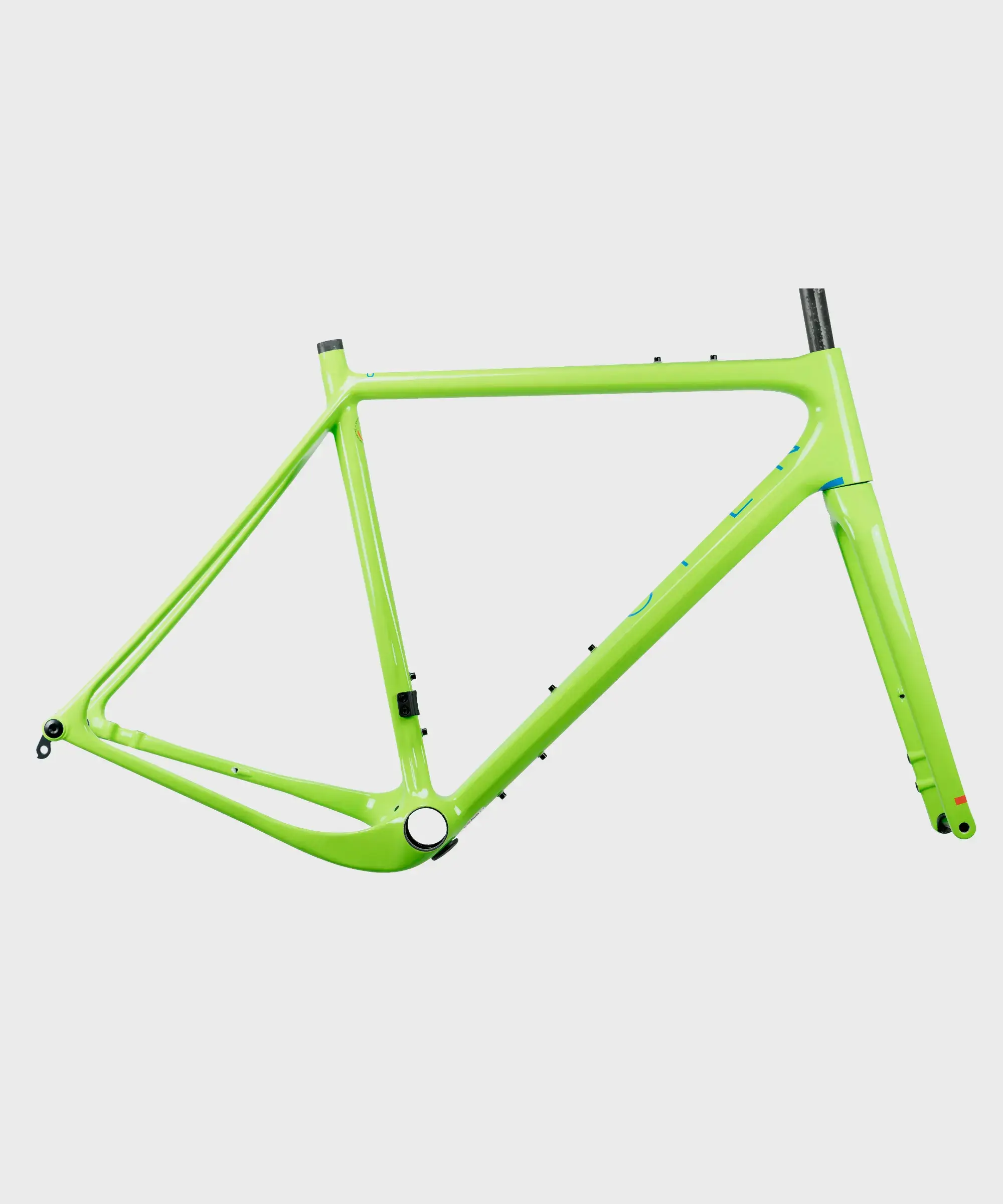

Open - Up - Flatmount Frameset
£2,199.00Price
FRAME SPECIFICATION
WEIGHT 1040G
FOR THE U.P. MODEL.
FRAME-ONLY, SIZE L, WITHOUT METAL PARTS +3%FORK WEIGHT 390G
FOR THE U.P. MODELSIZES S / M / L / XL RTP (READY-TO-PAINT) A CLEARCOAT IS NOT NEEDED FOR UV PROTECTION BUT RECOMMENDED TO PROTECT AGAINST SCRATCHES AND WEAR. SOME CUSTOMERS LEAVE THE FRAME BARE. BB STANDARD BB386EVO PRESSFIT 86.5X46MM BB SHELL RECOMMENDED GROUPSETS ANY SHIMANO GRX ANY SRAM AXS ANY SRAM 1X CAMPAGNOLO EKAR FOR SERIOUS GRAVEL AND OFF-ROAD (ON ANY BRAND OF BIKE), WE RECOMMEND A REAR DERAILLEUR WITH A CLUTCH OR CAGE DAMPER FRONT DERAILLEUR MOUNT BOLT-ON, REMOVABLE FRONT THRU-AXLE 100X12MM SUPERLIGHT CARBON-TI X-12 FRONT DISC ROTOR SIZE 160MM ONLY WITH SMARTMOUNT FRONT BRAKE CALIPER MOUNT SMARTMOUNT 160 SYSTEM ATTACHES FLATMOUNT CALIPER, WITHOUT ADAPTOR, FOR 160MM ROTORS REAR THRU-AXLE 142X12MM SUPERLIGHT CARBON-TI X-12 REAR DISC ROTOR SIZE 140MM SMARTMOUNT OR 160MM WITH ADAPTOR REAR BRAKE CALIPER MOUNT SMARTMOUNT 140 SYSTEM ATTACHES FLATMOUNT CALIPER, WITHOUT ADAPTOR, FOR 140MM ROTORS OR WITH ADAPTOR FOR 160MM ROTORS MULTISTOP INTERNAL SYSTEM DI2, ETAP, EPS, 1X MECHANICAL (ALL GROUPS) HEADSET INTEGRATED IS42/28.6 | IS52/40 WITH 45X45 DEGREE LOWER BEARING) FOR EXAMPLE CANE CREEK BAA1131 (UPPER) + CANE CREEK BAA1161 (LOWER), CHRIS KING DROPSET 2 OR TOKEN OMEGA A83 SEATPOST 27.2MM DIAMETER, STANDARD SET-UP ZERO-OFFSET FENDERS COMPATIBLE WITH CLIP-ON STYLE FENDERS CAGE MOUNTS SEATTUBE, DOWNTUBE, UNDER DOWNTUBE TT BAG MOUNT SYSTEM 100MM FRONT-POST-TO-HEADSET-EDGE MAX. WEIGHT (TOTAL RIDER+LUGGAGE) 120KG / 264 LBS EN/ISO/INTERNAL TEST STANDARD WARRANTY DETAILED INFORMATION HERE↗ INCLUDED WITH FRAMESET HEADSET
SEATTUBE COLLAR
THRU-AXLES
2 RD HANGERS
COVER BOLTS FOR FD MOUNT POSTS1 FD MOUNT 4 MULTISTOPS (2X, 1X, DI2, ETAP (ONLY INCLUDED WITH U.P.P.E.R.))
CABLE EXIT STOP
BB GUIDE
CABLE LINERS
NOISE-REDUCTION FOAM SLEEVES
BOTTLE CAGE BOLTS
MANUALPlease note: Specifications are subject to change without notice.
