Born on Gravel. Raised on Pavement
The Straggler is tuned for cross-over exploration on a wide variety of terrain conditions. It’s a day-tripper and a weekender. It’s a ‘rough road’ road bike, a cyclocross bike with no pretense about racing, a utilitarian townie, a light-duty touring bike and an all-weather commuter. It’s a steel gravel bicycle that thrives on the road. Think of it as a “mountain biker’s road bike.” If you only have room for one bike in your life, Straggler can (and should) be your one and only.
Straggler’s capabilities go well beyond asphalt. It also lends itself well to light touring setups. We're talking frame bags, seat bags, and "credit card touring” rather than full-blown touring. Straggler also handles our 8- and 24-Pack Racks well, so you have some heavier-duty loading options.
Specifications
- Material100% Surly proprietary 4130 CroMoly tubing
- Fork4130 CroMoly, disc only
- Steerer1 1/8" threadless
- Seatpost27.2mm
- Seat Clamp30.0mm (we include our Surly stainless clamp with our framesets)
- Front Derailleur28.6 mm band-on
- BB Shell68mm English/BSA
- Rear spacing135mm
- ColourChlorine Dream

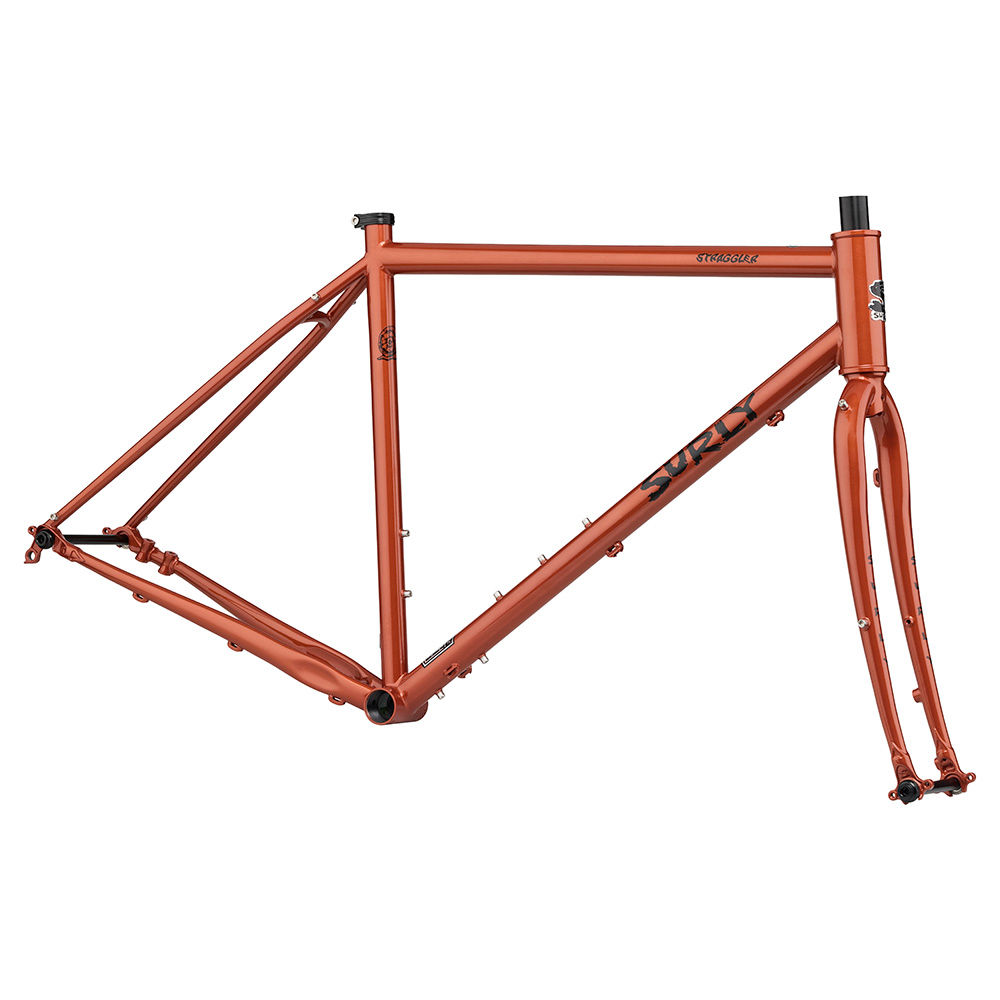

Surly - Straggler 700c - Frame Set
Frame Construction
4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction
4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
Rear Dropout Configuration
Forward-exiting horizontal
Rear Hub Spacing
10 x 135mm
Front Hub Spacing
10 x 100mm
Rear Brake
Disc - 51mm I.S. (160mm max rotor)
Front Brake
Disc - 51mm I.S. (160mm max rotor)
Head Tube
Ø34mm
Steerer Tube
Ø28.6mm (1-1/8")
Crown Race
Ø30mm (1-1/8")
Stock Headset Upper (S.H.I.S.)
EC34/28.6
Stock Headset Lower (S.H.I.S.)
EC34/30
Seat Collar
Ø30mm
Seatpost
Ø27.2mm
Front Derailleur (Clamp)
Bottom-pull (Ø28.6mm)
Max Chainring (CL)[3]
1x (Road): 50T
2x (Road): 39/53T
Bottom Bracket
68mm threaded (1.37" x 24TPI)
Tire Clearance Frame [1]/[2]
650b: 650b x 42mm (w/ fenders)
700c: 700c x 42mm (with or without fenders)
Tire Clearance Fork [1]
650b: 650b x 42mm (w/ fenders)
650b: 27.5 x 2.0" (w/o fenders)
700c: 700c x 42mm (w/ fenders)
700c: 29 x 2.0" (w/o fenders)
Rigid Fork Spec
650b: 380 x 44mm
700c: 400 x 44mm
Max Suspension Fork Length [4]
N/A
Bottle Mounts Frame
2 Standard
Bottle Mounts Fork
N/A
Rack Mounts Frame
Yes (upper and lower threaded)
Rack Mounts Fork
Yes (upper, lower, and mid-blade threaded)
Fender Mounts Frame
Yes
Fender Mounts Fork
Yes
Other Features
Downtube mounted shifter bosses (cable housing stops not included with frameset)
