Agile is our first all-round high-performance road bike frame, true to its name, it promises an extraordinary handling experience and an exceptional ride quality.
- Horizontal Angled T-Tail
- Support for Up to 32mm Tire Clearance
- T47 Bottom Bracket
- Responsive Trail Value Setting
- ACR Headset
- T800+T1000 Carbon Fiber EPS+LATEX Molding Process
- Aggressive Geometry
* Raw carbon option now available for custom paint. Regardless of the form, please make sure the ‘Winspace’ logo is prominently displayed on the frame, and no other brand names are visible. As the brand owner, we reserve the right to protect our products and trademarks.
PLEASE NOTE : WE IMPORT THESE DIRECT FROM CHINA AND SHIPPING MAY TAKE UP TO SIX WEEKS.

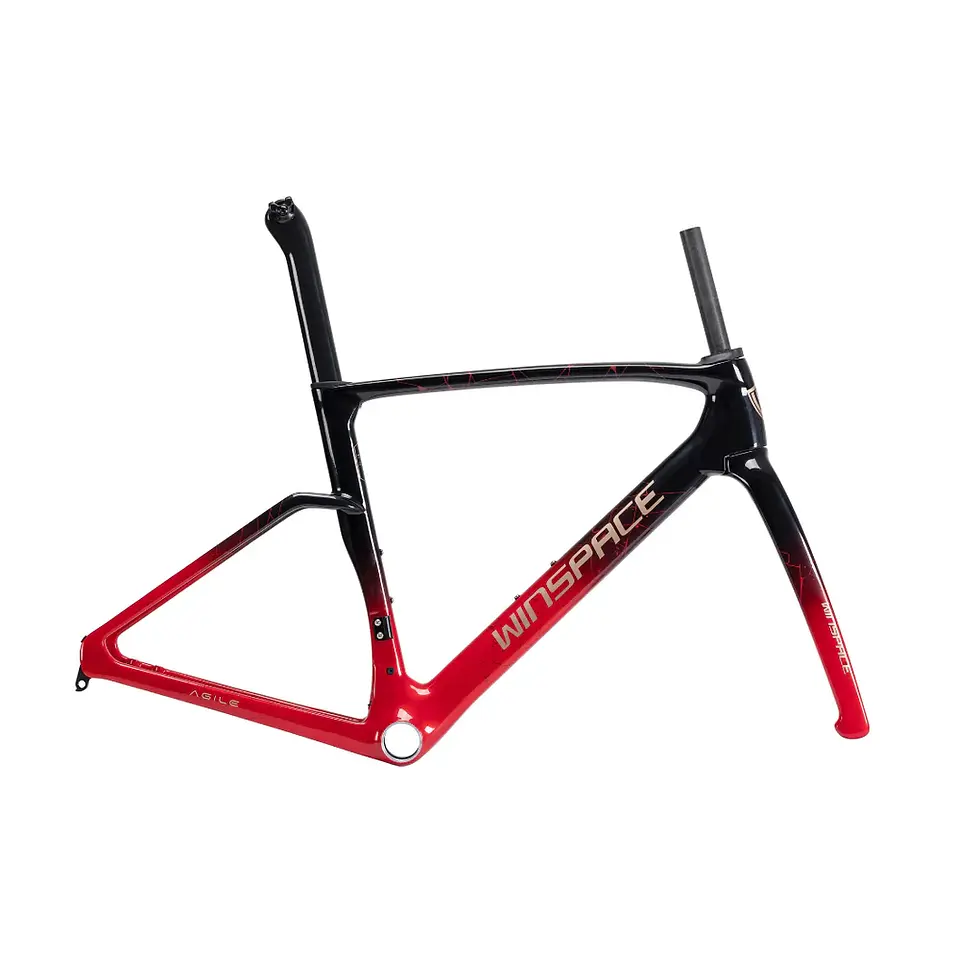

Winspace - Agile - Frameset
Model name: Agile
Sizes: XS (410mm), S (440mm), M (470mm), L (510mm), XL (550mm)
Headtube: NO.55R 1.5″/ACR/STD (headset included.)
BB:T47-85.5
Seatpost: Aero Seat Post (Included.)
Brake: Flat mount disc brake
Front derailleur: Brazed on
Derailleur Routing: Mechanical / Di2 /Campy EPS / SRAM eTAP
Tire clearance: Max. 700C*32C, 700C*28C for M size
Wheel Axle: 12mm through axle F100mm R142mm
Carbon fiber: T800+T1000
Weight: frame 850+/-35g for M size (Unpainted)
UCI approved
Contents: Frame, Fork, Seatpost, Headset, Di2 cable stoppers, Direct Mount Derailleur Hanger
Warranty: Limited 3yr warranty on the frameset
