Born to race, the new generation T1550 takes everything to the next level. It retains the aggressive geometry and performance focus, but with further optimization. Italian design meets our expertise in carbon fiber, creating a perfect blend. The T1550 2nd Gen. is a bike builder’s dream. Fully UCI certified, it’s ready to compete at the highest levels.
- T-Tail
- Wide-Clearing Fork
- T47 BB
- ACR Headset
- T1000+T800 Carbon Fiber One-Piece Molding Process
- Up to 32mm Tire Clearance
- Optimized Aggressive Geometry
- Flexible Handling Performance

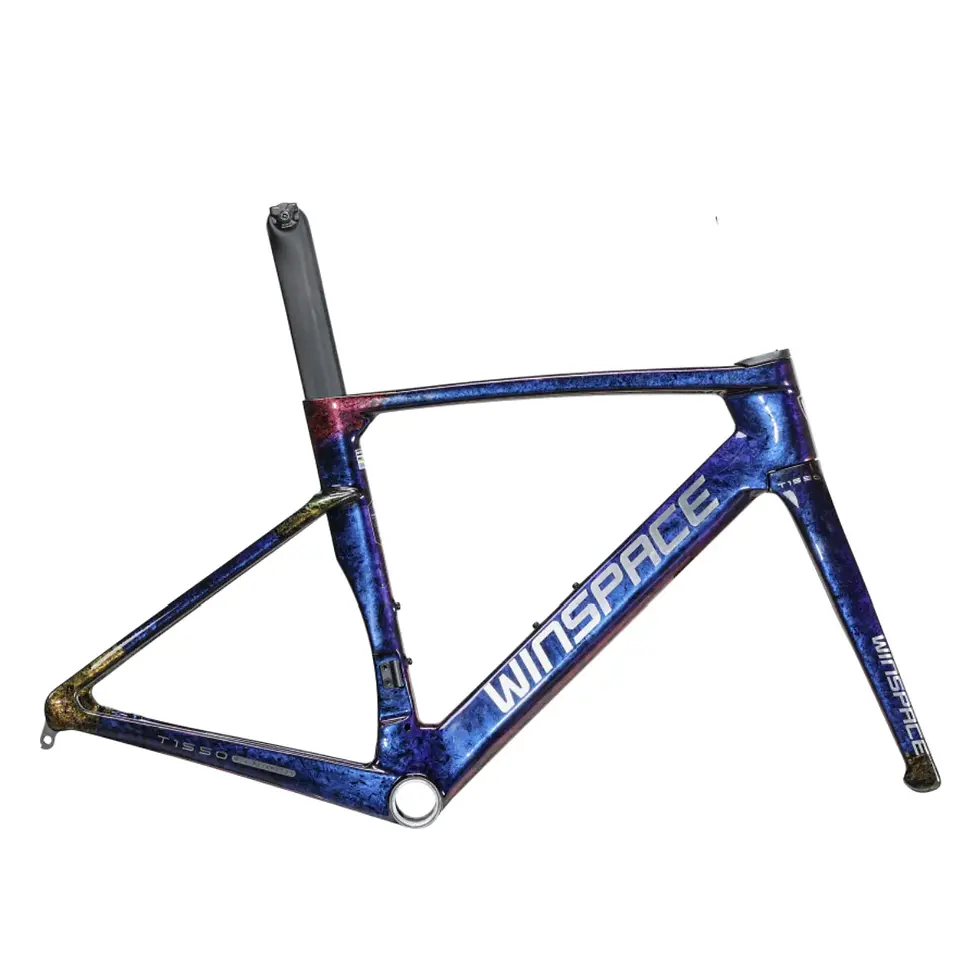

Winspace - T550 - Gen 2 - Frameset
Model name: T1550 2nd Generation
Sizes: XS (440mm), S (470mm), M (490mm), L (520mm), XL (550mm)
Headtube: NO.55R 1.5"/ACR/STD (headset included.)
BB: T47 (internal symmetric 85.5mm)
Seatpost: Proprietary Aero Seat Post (Included.)
Brake: Flat mount disc brake
Front derailleur: Brazed on
Derailleur Routing: Mechanical / Di2 /Campy EPS / SRAM eTAP
Tire clearance: Max. 700C*32C
Wheel Axle: 12mm through axle F100mm R142mm
Carbon fiber: Toray T1000 + T800 Carbon
Weight: frame 828+/-35g for M size (Unpainted)
UCI approved
Contents: Frame, Fork, Seatpost, Headset, Di2 cable stoppers, Direct Mount Derailleur Hanger
Warranty: Limited 3yr warranty on the frameset
